This has been designed for general sealing purpose which includes easy installation of the seal. This has a unique rubber bellow secondary seal, which provides a high degree of axial flexibility to compensate for lack of concentricity of the shaft & misalignment & wear due to thrust movement of the shaft.

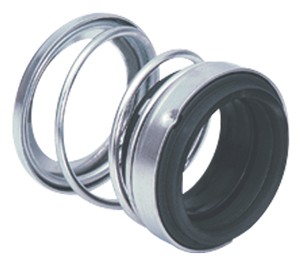

SINGLE COIL SPRING ELASTOMER BELLOW SEAL

Generally used in hot & cold-water pumps, Oil pumps, refrigeration compressor & fuel injection pumps.

Applications :

Materials :

Seal Faces                  : Carbon Vs Ceramic/Sic./TC
Secondary Seals        : Nitrile / Neoprene/Viton
Metal Components   : SS-304

Operating Limits :

Shaft Diameter
Pressure
Temperature
Speed

: 10 to 100mm
: up to 10 Bars
: -20 to 180°C
: up to 25 m/s
