Most commonly used rubber bellow seal, Due to its compact design it can be easily mounted. This has a unique rubber bellow secondary seal, which provides a high degree of axial flexibility to compensate for lack of concentricity of the shaft & misalignment & wear due to thrust movement of the shaft.

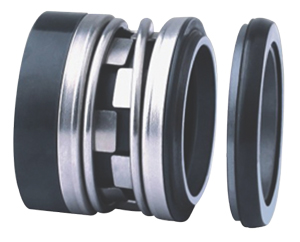

GENERAL PURPOSE RUBBER BELLOW SEAL
Generally used in sewage applications, waste water pumps & fuel injection pumps.
Applications :
Materials :
Seal Faces : Carbon Vs Ceramic / Sic./TC
Secondary Seals : Nitrile / Neoprene / Viton
Metal Components : SS-304
Operating Limits :
Shaft Diameter
Pressure
Temperature
Speed
: 10 to 100mm
: up to 10 Bars
: -20 to 150°C
: up to 25 m/s
