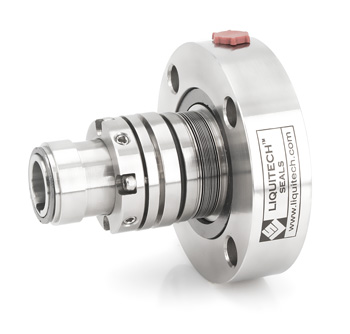

LTS-31SC Cartridge seals are self-contained units consisting of a shaft sleeve, seal, and gland plate. The unit is fitted onto the pump shaft as a built assembly, and no further fitting is required. Cartridge seals are an attempt to over-come the fitting problems of conventional seals. They are supplied in single and double form, and the gland plate is often fitted with various tappings to provide for flushing, cooling water injection, and disaster control.
CARTRIDGE SEAL
TYPE LTS-31SC
Generally used in for handling highly corrosive chemicals, high Temperature applications, etc.
Applications :
Materials :
Seal Faces : Ceramic / Sic/Carbon Vs Ceramic / RB Sic./TC
Secondary Seals : Viton/PTFE/GFT
Metal Components : SS-316
Secondary Seals : Viton/PTFE/GFT
Metal Components : SS-316
Operating Limits :
Shaft Diameter
Pressure
Temperature
Speed
Pressure
Temperature
Speed
: 25 to 150mm
: up to 15 Bars
: -50 to 180°C
: up to 25 m/s
: up to 15 Bars
: -50 to 180°C
: up to 25 m/s
